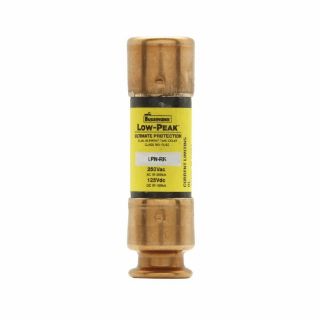

Actual Product May Vary From Image

LPN-RK-30SP BSF

Name: LPN-RK-30SP BSF
Brand: Bussmann
SKU: LPN-RK-30SP BSF
Price: 31.50 USD
Availability: InStock

Bussmann Low-Peak™ LPN-RK-30SP Current Limiting Time Delay Fuse, 30 A, 250 VAC/125 VDC, 300/100 kAIC Interrupt, RK1 Class, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: LPN-RK-30SP

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	11
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$31.50

Qty:

Product Details

Brand Name

Bussmann

Type

Current Limiting Time Delay

Alternate Supplier #

Grainger - 4XF56

Description

Ultimate protection Class RK1 dual element, current- limiting time-delay fuses available with optional open fuse indication. Time-delay - 10 s (minimum) at 500% of rated current (8 s for 0 to 30 A sizes).

Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LPN-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 30 A, 250 VAC/125 VDC, 300/100 kAIC Interrupt, Class: RK1, 8 s at 500% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.56 in Dia x 2 in L Body Size

Application

Branch Circuit, Large Distribution Switchboards, Power Panelboard, Motor Control Centers and Machinery Disconnect Switches, Safety and Security Systems

Standards

CE Certified | CSA C22.2 | UL Listed

Features

Fast short circuit protection and dual element, time delay performance provide ultimate protection
Easy selective coordination with all Low-Peak™ fuses using simple 2:1 ampacity ratio
Current limiting for maximum short circuit protection
No damage Type "2" protection for IEC and NEMA motor starters when properly sized
High inrush current motor protection
Time delay permits 130% FLA sizing for back-up motor protection
Provides protection against 1 ph motor damage
Low wattage loss power consumption
Electrically isolated end caps for additional safety
Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses

Specifications

Amperage Rating:	30 A
Body Size:	0.56 in Dia x 2 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100/300 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	8 s at 500%
Series:	LPN
Terminal Type:	Ferrule
Voltage Rating:	250 VAC/125 VDC
