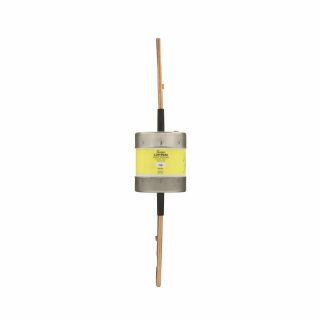

Actual Product May Vary From Image

LPS-RK-450SP BSF

Name: LPS-RK-450SP BSF
Brand: Bussmann
SKU: LPS-RK-450SP BSF
Price: 1,863.93 USD
Availability: InStock

Bussmann Low-Peak™ LPS-RK-450SP Current Limiting Time Delay Fuse, 450 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, RK1 Class, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: LPS-RK-450SP

Availability: Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	3
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$1,863.93

Qty:

Product Details

Brand Name

Bussmann

Type

Current Limiting Time Delay

Alternate Supplier #

Grainger - 6F334

Description

Ultimate protection Class RK1 current-limiting, dual element, time-delay fuses available with optional open fuse indication.

Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 450 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 10 s at 500% Response, Blade End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 2.88 in Dia x 13.38 in L Body Size

Application

Branch Circuit, Large Distribution Switchboards, Power Panelboard, Motor Control Centers and Machinery Disconnect Switches, Safety and Security Systems

Standards

CE Certified | CSA C22.2 File 53787/248.12 | UL File No.E4273 Guide JDDZ

Features

Current limitation for maximum short circuit protection and reduced arc flash hazard
Easy selective coordination with all Low-Peak™ fuses using simple 2:1 ampacity ratio
No damage type 2 protection for IEC and NEMA starters when properly sized
High inrush current motor protection
Time delay permits 130% FLA sizing for back-up motor overload protection and 1 ph protection
Low wattage loss power consumption
Electrically isolated end caps for additional safety
VAC interrupt rating that exceeds requirements for virtually all applications

Specifications

Amperage Rating:	450 A
Body Size:	2.88 in Dia x 13.38 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100/300 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	10 s at 500%
Series:	LPS
Terminal Type:	Blade
Voltage Rating:	600 VAC/300 VDC
