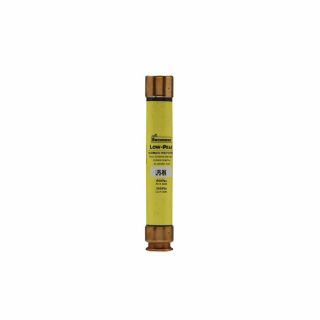

Actual Product May Vary From Image

LPS-RK-5SP BSF

Name: LPS-RK-5SP BSF
Brand: Bussmann
SKU: LPS-RK-5SP BSF
Price: 82.80 USD
Availability: InStock

Bussmann Low-Peak™ LPS-RK-5SP Current Limiting Time Delay Fuse, 5 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, RK1 Class, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: LPS-RK-5SP

Availability: Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	8
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$82.80

Qty:

Product Details

Brand Name

Bussmann

Type

Current Limiting Time Delay

Alternate Supplier #

Grainger - 1BW75

Description

Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.

Bussmann Low-Peak™ Fuse, Current Limiting Time Delay, Series: LPS-RK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 5 A, 600 VAC/300 VDC, 300/100 kAIC Interrupt, Class: RK1, 8 s at 500% Response, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 0.81 in Dia x 5 in L Body Size

Application

Branch Circuit, Large Distribution Switchboards, Power Panelboard, Motor Control Centers and Machinery Disconnect Switches, Safety and Security Systems

Standards

Features

Fast short circuit protection and dual element, time delay performance provide ultimate protection
Insulated end caps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing
Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses
Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective co-ordination easy
Time delay permits 130% FLA sizing for back-up motor protection
Inventory consolidation of class RK1/RK5/H fuses for reduced SKU investment and minimizing potential for misapplying fuse
Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current-limitation and selective co-ordination ratio of 2:1 (within Low-Peak™ fuse family) helps prevent widespread blackouts
Protects against 1 ph motor damage
Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
Electrically isolated end caps for additional safety

Specifications

Amperage Rating:	5 A
Body Size:	0.81 in Dia x 5 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100/300 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	8 s at 500%
Series:	LPS
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
