Actual Product May Vary From Image

LPSC004ID LIT

Name: LPSC004ID LIT
Brand: Littelfuse
SKU: LPSC004ID LIT
Price: 168.06 USD
Availability: OutOfStock

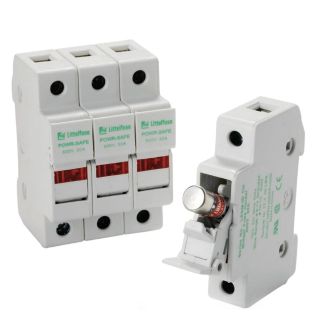

Littelfuse® POWR-GARD® POWR-SAFE LPSC004ID Dead Front Indicating Fuse Holder, 600 VAC, 30 A, 14 to 8 AWG Wire, 4 Poles

Manufacturer: Littelfuse

Manufacturer part number: LPSC004ID

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$168.06

Qty:

Product Details

Brand Name

Littelfuse®

Type

Dead Front Indicating

Description

Littelfuse® POWR-SAFE in dead front in holders provide optimum protection to personnel. Indicating and non-indicating versions are available in 1, 2, 3 or 4 poles for class CC and midget fuses.

Littelfuse® POWR-GARD® POWR-SAFE Fuse Holder, Dead Front Indicating, Series: LPSC, 600 VAC, 30 A, 4 Pole, Class: CC, 14 to 8 AWG Wire, DIN Rail Mounting, For Use With: Class CC Fuse, Thermoplastic, White, 2.33 in L x 2.8 in W Dimensions

Standards

UL File No. E14721 | CSA File No. LR7316 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Easy installation and fuse removal with no additional pullers or tools required
Ventilated design for cooler operation
Meets dead front requirements
35 mm DIN rail mounting
Compact design
Indicates above 80 V

Specifications

Amperage Rating:	30 A
Class:	CC
Color:	White
Country of Origin:	CN
Dimensions:	2.33 in L x 2.8 in W
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	4
Series:	LPSC
Suitable For Use With:	Class CC Fuse
Voltage Rating:	600 VAC
Wire Size:	14 to 8 AWG
