LPSM0002ZQCID LIT

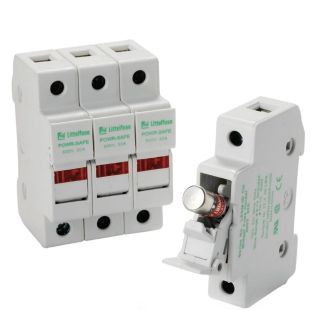

Picture of LPSM0002ZQCID LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
LPSM0002ZQCID
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$161.38 / EA

Description

Brand Name

Littelfuse®

Type

Dead Front Indicating

Description

The LPSM midget fuse holder series is a dead front design providing protection to personnel when installing and removing fuses. The compact fuse holder mounts quickly onto 35 mm DIN rail, decreasing panel layout and assembly time. This product has two quick connect terminals on both the top and bottom of the holder, offering an additional connection option. It is available in 1, 2, 3 and 4-pole configurations.
Littelfuse® POWR-SAFE Fuse Holder, Dead Front Indicating, Series: LPSM, 600 VAC/VDC, 30 A, 2 Pole, Class: Midget, Quick-Connect Connection, DIN Rail Mounting, For Use With: Midget 10 x 38 mm Fuse, Thermoplastic, White, 1.402 in W x 2.35 in D x 3.15 in H Dimensions

Standards

UL Listed | CSA Certified | UL File No. E14721 | IEC 60269-2 | CCC Certified | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Dual 1/4 in quick connect terminals on top and bottom of holder
  • Meets dead front requirements
  • Mountable on 35 mm DIN rail
  • Local LED indication

Specifications

Amperage Rating:30 A
Class:Midget
Color:White
Connection Type:Quick-Connect
Country of Origin:CN
Dimensions:1.402 in W x 2.35 in D x 3.15 in H
Material:Thermoplastic
Mounting Type:DIN Rail
Number of Poles:2
Series:LPSM
Suitable For Use With:Midget 10 x 38 mm Fuse
Voltage Rating:600 VAC/VDC
