LPSM004ID LIT

Name: LPSM004ID LIT
Brand: Littelfuse
SKU: LPSM004ID LIT
Price: 232.66 USD
Availability: OutOfStock

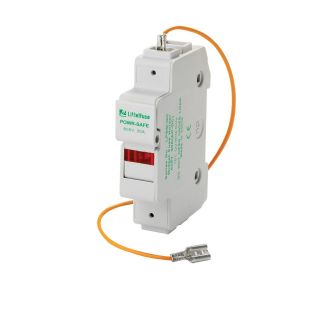

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LPSM004ID

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$232.66 / EA

Description

Brand Name

Littelfuse®

Type

Dead Front Indicating

Description

Littelfuse® POWR-SAFE in dead front in holders provide optimum protection to personnel. Indicating and non-indicating versions are available in 1, 2, 3 or 4 poles for class CC and midget fuses.

Littelfuse® POWR-SAFE Fuse Holder, Dead Front Indicating, Series: LPSM, 600 VAC/VDC, 30 A, 4 Pole, Class: Midget, Pressure Plate Connection, 14 to 8 AWG Wire, DIN Rail Mounting, 38 mm Fuse Length, 10 mm Diameter Fuse, Thermoplastic, White, 2.8 in W x 2.33 in D x 3.06 in H Dimensions

Standards

UL E14721 | CSA LR7316 | UL 94 V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

Littelfuse® POWR-SAFE dead front holders provide optimum protection to personnel for class CC and midget style fuses
100 kA interrupting rating
Easy installation and fuse removal with no additional pullers or tools required
35 mm DIN rail mounting
Ventilated design for cooler operation
Meets dead front requirements
Compact design
8 to 14 AWG copper wire

Specifications

Amperage Rating:	30 A
Class:	Midget
Color:	White
Connection Type:	Pressure Plate
Country of Origin:	CN
Dimensions:	2.8 in W x 2.33 in D x 3.06 in H
Fuse Diameter:	10 mm
Fuse Length:	38 mm
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	4
Series:	LPSM
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 8 AWG
