LPSP17125480 APN

Name: LPSP17125480 APN
Brand: Appleton
SKU: LPSP17125480 APN
Availability: OutOfStock

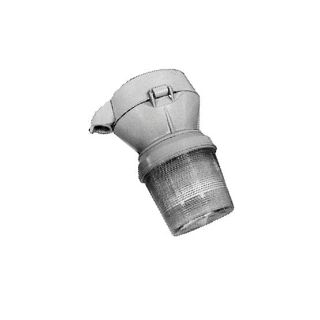

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

LPSP17125480

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Description

Appleton® Mercmaster™ II HID Lighting Fixture, 480 VAC, 196 W Fixture, 0.15 A Starting, 0.45 A Operating, Pulse Start Metal Halide Lamp, 175 W Lamp, Mogul Lamp Base, Constant Wattage Autotransformer (CWA) Ballast, Heat-Resistant Prismatic Glass Lens, 17500 Lumens, 25 deg Stanchion Mounting, Copper Free Aluminum Housing Material, Epoxy Powder Coated Housing Finish, 9.88 in W Dimensions

Application

Tunnels, Walkways, Bridges, Storage Facilities, Processing Plants, Parking Lots, Foundries, Manufacturing Plants, Power Plants and Wet and Outdoor Saltwater Locations

Standards

UL 1598/1598A/844 File No. E10444 | UL Listed for NEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G Class III

Features

Superior corrosion resistant copper free aluminum mounting hoods, ballasts and guards with epoxy powder coat, inside and out
Standard pendant mounting hood for rigid or flexible mounting, balanced round design automatically hangs plumb when used with flexible hanger
Positive sealing
Hinge and bolt construction assures 360 deg compression at all points on gasket
One-piece ballast housing for each component provides even heat dissipation for cooler operation and longer ballast life
Heat barrier isolates capacitor from ballast
Standard non-PCB biodegradable capacitors installed in separate compartment
Mogul socket is furnished with 200 deg C welded leads, pre-wired to the ballast
Porcelain socket assures trouble free operation in high ambient installations
Vented reflectors result in cooler, dirt-free operation, increased lumen output
Reflectors secured to mounting hood with screws (furnished)

Specifications

Amperage Rating:	0.15 A Starting, 0.45 A Operating
Ballast Type:	Constant Wattage Autotransformer (CWA)
Country of Origin:	MX
Dimensions:	9.88 in W
Fixture Wattage:	196 W
Housing Finish:	Epoxy Powder Coated
Housing Material:	Copper Free Aluminum
Lamp Base Type:	Mogul
Lamp Type:	Pulse Start Metal Halide
Lamp Wattage:	175 W
Lens Type:	Heat-Resistant Prismatic Glass
Lumens:	17500 Lumens
Mounting Type:	25 deg Stanchion
Voltage Rating:	480 VAC
