LR201-X-2RSR INA

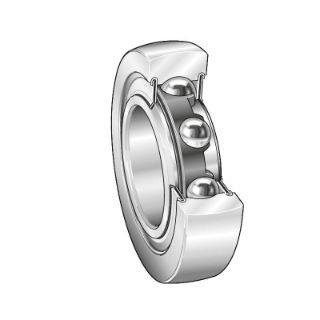

Picture of LR201-X-2RSR INA
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
LR201-X-2RSR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$39.95 / EA

Description

Brand Name

INA

Type

Standard Yoke Type

Description

Yoke type track rollers are single or double-row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full-complement rolling element sets.
INA Track Roller, Standard Yoke Type, Series: LR2, 12 mm Bore, 35 mm Roller Diameter, 10 mm Roller Width, 6000 N Load, Double Seal Closure, 12000 rpm Maximum, -20 to 120 deg C

Application

Cam Gears, Bed Ways, Conveying Equipment and Linear Guidance Systems

Features

  • Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running
  • Yoke type track rollers LR can be axially clamped or located by means of conventional fasteners such as snap rings
  • Single row ball bearing
  • Lip seals on both sides with radial sealing action
  • Cylindrical outer surface
  • 6000 N dynamic/2750 N static

Specifications

Bore Diameter:12 mm
Closure Type:Double Seal
Country of Origin:SK
Load Capacity:6000 N
Maximum Speed:12000 rpm
Roller Diameter:35 mm
Roller Width:10 mm
Series:LR2
Temperature Rating:-20 to 120 deg C

Products Specifications

Bore Diameter
12 mm
Brand Name
INA
Roller Diameter
35 mm
Sealed
Sealed
