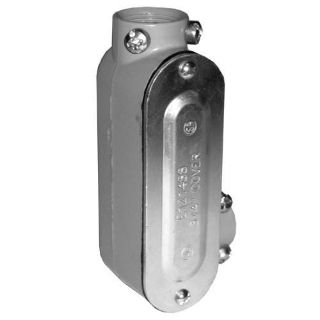

LR50DCGSST NER

Name: LR50DCGSST NER
Brand: Appleton
SKU: LR50DCGSST NER
Price: 20.87 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

LR50DCGSST

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$20.87 / EA

Description

Brand Name

Appleton®

Type

Type LR Multi-Hub

Description

NEER™ all-in-one multi-hub threaded and set screw conduit bodies are used to connect and change direction of conduit runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.

Appleton® NEER™ Conduit Outlet Body, Type LR Multi-Hub, 1/2 in Hub, 2 Hubs, 4.3 cu-in Capacity, NEMA FB-1 Enclosure, Threaded/Set Screw Connection, Die-Cast Copper-Free Aluminum, Epoxy Powder Coated, 4.4 in L x 2.06 in W x 1.64 in H Dimensions

Application

For use to provide access to the interior of the raceway for wire pulling, splicing and maintece, allows connection of straight and branch conduit runs, 90 deg bends and use with rigid, IMC and EMT conduit applications

Standards

CSA C22.2 No. 18.3/208044 | UL 514A File No. E53330

Features

Lightweight aluminum facilitates shipping, handling and installing

Specifications

Capacity:	4.3 cu-in
Connection Type:	Threaded/Set Screw
Country of Origin:	IN
Dimensions:	4.4 in L x 2.06 in W x 1.64 in H
Enclosure:	NEMA FB-1
Finish:	Epoxy Powder Coated
Hub Size:	1/2 in
Material:	Die-Cast Copper-Free Aluminum
Number of Hubs:	2
