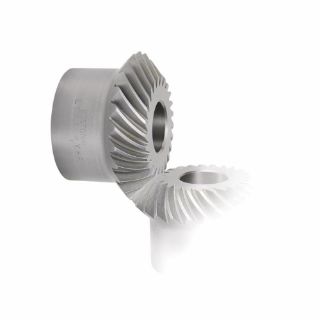

Actual Product May Vary From Image

LSA107YR BOS

Name: LSA107YR BOS
Brand: Boston Gear
SKU: LSA107YR BOS
Price: 359.42 USD
Availability: OutOfStock

Boston Gear® LSA107Y-R Spiral Miter Gear With Keyway and Setscrew, 6 Diametral Pitch, Right Hand Tooth Spiral, 20 deg Pressure Angle, 24 Teeth, 4 in Dia Pitch, 0.89 in W Face, 1-1/2 in Dia Bore, Steel

Manufacturer: Boston Gear

Manufacturer part number: LSA107Y-R

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$359.42

Qty:

Product Details

Brand Name

Boston Gear®

Description

Boston miter gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Miter gears are similar to bevel gears except miter gears are used for 1:1 ratios. Straight tooth miter gears are cut with a generated "Coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth miter gears are better suited for higher speeds and high torque applications.

Boston Gear® Spiral Miter Gear, 1-1/2 in Bore, 4.22 in OD, 1:1 Gear Ratio, 24 Teeth, 6 Diametral Pitch, 4 in Pitch Diameter, 0.89 in Face Width, 3 in Diameter Hub, 1.31 in Hub Projection, 2.317 in Overall Length, 20 deg Pressure Angle, Right Hand Tooth Spiral, 35 deg Spiral Angle, 3/8 x 3/16 in Keyway, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

90 deg intersecting shaft applications provide highly efficient operation
Unhardened teeth offer versatility

Specifications

Bore Diameter:	1-1/2 in
Country of Origin:	US
Diametral Pitch:	6
Face Width:	0.89 in
Gear Ratio:	1:1
Hub Diameter:	3 in
Hub Projection:	1.31 in
Keyway Size:	3/8 x 3/16 in
Material:	Steel
Number of Teeth:	24
Outside Diameter:	4.22 in
Overall Length:	2.317 in
Pitch Diameter:	4 in
Pressure Angle:	20 deg
Spiral Angle:	35 deg
Spiral Type:	Right Hand Tooth
