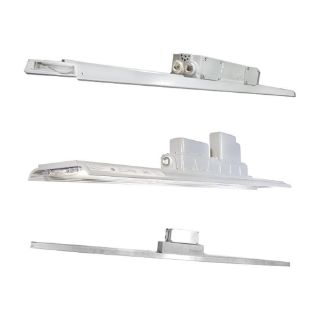

LSC3N4D3GEX DLG

Product Details

Manufacturer part number:
LSC3N4D3GEX
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

SafeSite®

Type

Medium Beam

Description

Built specifically for hazardous environments, the CID1 linear greatly improves illumination to drastically increase visibility and safety in class I, Division 1 areas. the CID1 linear comes standard with top and side conduit entries to provide flexibility when installing. with safety as the driving priority, this fixture features an IP66, NEMA 4X rated enclosure for longstanding protection against the elements in the most demanding environments and is available with a battery backup option that provides safe illumination in emergency situations in class I, Div. 1 areas for up to 3 hours.
SafeSite® Linear Fixture, Medium Beam, 100 to 277 VAC, 34 W Fixture, LED Lamp, >125000 hr Average Life, Neutral White Light, 4000 K Color, 75 CRI, Tempered Glass Lens, 3600 Lumens, NEMA 4X/IP66, Threaded Mount, Copper-Free Aluminum Housing, Gray Housing, 2 ft L x 4.25 in W x 6.98 in H

Application

Indoor, Outdoor and Hazardous Locations

Standards

UL 844 | C22.2 No. 137-M81 | Class I Div 1, Groups C, D | IEC 61000-3-2 | FCC Title 47 Subpart B Section 15 Class A

Features

  • Instant ON/OFF operation
  • Mercury free
  • Resistant to shock and vibration
  • Temperature compensation technology for longer life

Specifications

Average Life:>125000 hr
Color Rendering Index (CRI):75
Color Temperature:4000 K
Country of Origin:MX
Dimensions:2 ft L x 4.25 in W x 6.98 in H
Enclosure Type:NEMA 4X/IP66
Fixture Wattage:34 W
Housing Finish:Gray
Housing Material:Copper-Free Aluminum
Lamp Type:LED
Lens Type:Tempered Glass
Light Color:Neutral White
Lumens:3600 Lumens
Mounting Type:Threaded
Voltage Rating:100 to 277 VAC
