LSLD-024A FSG

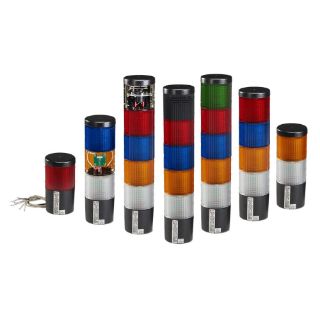

Federal Signal's Litestak® status indicators are a vertical column of lights that indicate the status of a machine's operating process in a full 360 deg radius. The Litestak® model LSLD modular indicator light system allows the user to combine up to five interchangeable lamp units with a base power unit. Modules are sold separately for a truly customized indicator. Light modules come complete with a 100000 hr led lamp, led light output coordinates with the module`s impact resistant polycarbonate lensing. Led lamps consume less power, operate at a lower temperature and are remarkably resistant to vibration which makes them perfect for use in heavy duty, high vibration applications. Led lamps are available in five colors amber, blue, clear, green or red. The standard double-contact bayonet base retrofits into any Federal Signal Litestak® unit to replace original incandescent lamps. An optional sound module (models LSS or LSH) can be added to the top of the Litestak® column to create a dual purpose audible visual status indicating signal. The LSS sound module allows the user to select from 32 tones via a simple dip-switch panel. In applications where a single loud tone is all that is necessary, the LSH piezoelectric horn is a perfect audible addition. Litestak® is a versatile system that allows the user to select either steady burn or flash. A flasher is included on-the 120 VAC LSB unit only but can be purchased separately for 24 VDC models. The Litestak® base unit can be either surface mount, or 3/4 in pipe mount.

Federal Signal Stack Light Module, Status Indicator Steady-Burn Mode, Series: LSLD, 24 VDC, 0.08 A, 3.93 in Diameter, LED Array Lamp, Amber, 50000 hr Average Life, Specifications Met: ARRA Compliant, BAA Compliant, UL Listed, cUL Listed, CSA Certified, Surface Mounting, Wire Terminal, NEMA 1 NEMA Rating, 0 to 120 deg F, Polycarbonate Lens, 3.93 in W x 3.93 in D x 3.25 in H Dimensions
