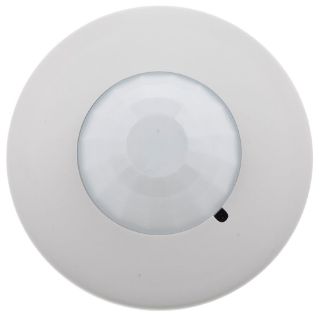

LVPR1500RP HWD

Name: LVPR1500RP HWD
Brand: Hubbell Wiring Device-Kellems
SKU: LVPR1500RP HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

LVPR1500RP

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Low Profile

Description

The LVPR1500R is a line voltage ceiling mount sensor that uses Passive Infrared (PIR) technology to turn lighting loads on and off based upon occupancy. As a line voltage sensor, no control unit is required. The LVPR1500R is an excellent choice where long-range major motion detection is needed. It has a 360 deg field of view with low profile styling. It also contains an integral photocell control that increases energy savings by preventing lights from turning on when there is sufficient natural light.

Wiring Device-Kellems H-MOSS® Occupancy Sensor, Low Profile, 24 VDC, 10 mA, Passive Infrared Sensor, 1500 sq-ft Coverage, 360 deg Viewing, 30 s to 30 min Time Delay, Wire Lead Connection, Ceiling Mounting, 32 to 131 deg F, ABS, White, 4 in Dia x 1.9 in H Dimensions

Application

For energy management systems in office buildings, signals HVAC that there is occupancy and that air/heat should be turned on and can be used to indicate occupancy with an alarm system

Standards

cULus Listed | UL Listed | ARRA Compliant | Buy American Act Compliant

Features

Excellent for long range major motion detection
Integral photocell control for daylight harvesting increases energy savings by preventing the lights from turning on when there is sufficient natural light
360 deg field of view excellent coverage of a wide area
Low profile styling device sits only 1 in off of ceiling, takes up minimal space
Auxiliary relay version low voltage ceiling sensor with relay 24 VDC 10 mA, uses CU300A control unit
800 W at 120 VAC incandescent, 1000 W at 277 VAC ballast, 1800 W at 347 VAC ballast, 2200 W ballast load rating

Specifications

Amperage Rating:	10 mA
Color:	White
Connection Type:	Wire Lead
Country of Origin:	CN
Coverage:	1500 sq-ft
Dimensions:	4 in Dia x 1.9 in D
Lamp Type:	LED/Incandescent
Material:	ABS
Mounting Type:	Ceiling
Power Rating:	800 to 2200 W
Sensor Type:	Passive Infrared
Series:	LVPR
Temperature Rating:	32 to 131 deg F
Time Delay:	30 s to 30 min
Viewing Angle:	360 deg
Voltage Rating:	24 VDC
