LWULUN29DANNGN DLG

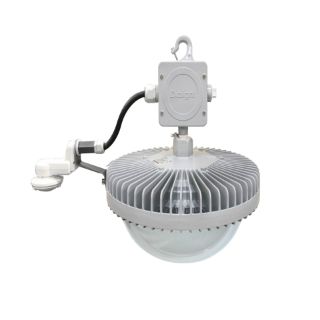

Picture of LWULUN29DANNGN DLG
Actual Product May Vary From Image

Product Details

Manufacturer:
Dialight Corporation
Manufacturer part number:
LWULUN29DANNGN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Vigilant®

Type

Ultra Wide Beam

Description

Offering the same state-of-the-art technology and outstanding durability and performance as our high bay models, Dialight Vigilant® and SafeSite® low bay fixtures deliver class-leading safety, reliability and long life for mounting heights 10 to 20 ft. With its sleek profile, lightweight design and versatile mounting options, Dialight low bay fixtures are ideal for oil and gas, heavy industry and cold storage.
Vigilant® Low Bay Fixture, Ultra Wide Beam, 100 to 277 VAC, 120 to 250 VDC, 80 W Fixture, LED Lamp, 10 years Average Life, Neutral White Light, 4000 K Color, 80 CRI, 10 to 30 VDC Dimming Ballast, Diffused Polycarbonate Dome Lens, 8750 Lumens, NEMA 4X/IP66/IP67, Swivel Bracket Mount, Copper-Free Aluminum Housing, Gray Housing

Application

Indoor/Outdoor, Heavy Industry, Cold Storage, Oil and Gas Applications

Standards

UL 1598/A | UL 8750 | CSA C22.2 No. 250-08 | IEC 61000-3-2 | FCC Title 47 Subpart B Section 15 Class A | IEEE C62.41

Features

  • Superior dual coat finish with sealed polyester topcoat
  • -40 to 149 deg F wide operating temperature range
  • Integrated wiring box for ease of installation
  • Without cord and plug

Specifications

Average Life:10 years
Ballast Type:10 to 30 VDC Dimming
Color Rendering Index (CRI):80
Color Temperature:4000 K
Country of Origin:MX
Enclosure Type:NEMA 4X/IP66/IP67
Fixture Wattage:80 W
Housing Finish:Gray
Housing Material:Copper-Free Aluminum
Lamp Type:LED
Lens Type:Diffused Polycarbonate Dome
Light Color:Neutral White
Lumens:8750 Lumens
Mounting Type:Swivel Bracket
Voltage Rating:100 to 277 VAC, 120 to 250 VDC
