M 3 13/16 MSG

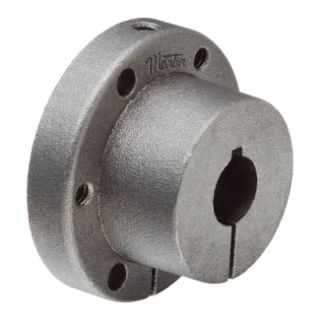

Picture of M 3 13/16 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
M 3 13/16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$595.25 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, Standard, 3-13/16 in Bore Dia, 6-1/2 in Barrel Dia, 11.38 in Hub Dia, 7-7/8 in Bolt Circle, 9 in Flange Dia, 1-1/4 in Flange Thickness, 4 Bolt Holes, 3/4-10 x 6-3/4 in Screw, 85000 in-lb, 6-3/4 in Overall Length, 1 x 1/2 in Keyway, Cast Iron

Features

  • Size M bushing
  • Recommended for use with QD bushed parts
  • Tolerances meet or exceed industry guidelines and standards
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Includes

Cap Screws, Lock Washers, Setscrew and Instruction Sheet

Specifications

Barrel Diameter:6-1/2 in
Bolt Circle Diameter:7-7/8 in
Bore Diameter:3-13/16 in
Country of Origin:US
Flange Diameter:9 in
Flange Thickness:1-1/4 in
Hub Diameter:11.38 in
Keyway Size:1 x 1/2 in
Material:Cast Iron
Number of Bolt Holes:4
Overall Length:6-3/4 in
Screw Size:3/4-10 x 6-3/4 in
Torque Rating:85000 in-lb

Products Specifications

Brand Name
Martin Sprocket & Gear
