M 3 1/8 BRN

Name: M 3 1/8 BRN
Brand: Regal Rexnord
SKU: M 3 1/8 BRN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1074954

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Type M

Description

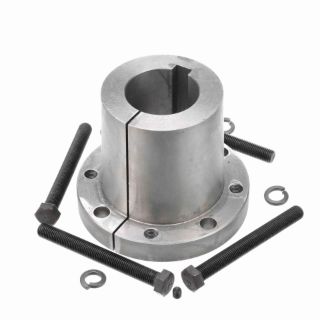

Browning® Q-D? Bushing, Type M, 3-1/8 in Bore, 6-1/2 in Barrel Diameter, 7-7/8 in Diameter Bolt Circle, 9 in Diameter Flange, 1-1/4 in Flange Thickness, 4 Bolt Holes, 3/4-10 x 6-3/4 in Screw, 85000 in-lb Torque, For Use With: Gearbelt® Sheaves, Sprockets and Pulleys, 6.76 in Overall Length, 3/4 x 3/8 in Keyway, Cast Iron

Application

Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Packaging Machinery and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
3/4 in/ft taper on barrel
Self-locking taper provides the highest degree of mechanical locking product to product
Conventional mounting

Specifications

Barrel Diameter:	6-1/2 in
Bolt Circle Diameter:	7-7/8 in
Bore Diameter:	3-1/8 in
Country of Origin:	MX
Flange Diameter:	9 in
Flange Thickness:	1-1/4 in
Keyway Size:	3/4 x 3/8 in
Material:	Cast Iron
Number of Bolt Holes:	4
Overall Length:	6.76 in
Screw Size:	3/4-10 x 6-3/4 in
Suitable For Use With:	Gearbelt® Sheaves, Sprockets and Pulleys
Torque Rating:	85000 in-lb
