M-HE25 1 3/4 MSG

Name: M-HE25 1 3/4 MSG
Brand: Martin Sprocket & Gear
SKU: M-HE25 1 3/4 MSG
Availability: OutOfStock

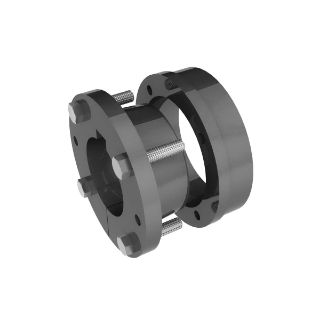

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

M-HE25 1 3/4

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

Style M-HE

Description

Martin's M-HE™ bushings are available from stock to fit all popular pulley sizes. Martin stocks M-HE™ bushings in a wide range of bore sizes per hub. The M-HE™ bushing offers a 3 in/ft taper, which reduces end disc pre-stressing.

Martin Conveyor Bushing, Style M-HE, 1-3/4 in Bore Dia, 3.312 in Barrel Dia, 4.7 in Hub Dia, 3-15/16 in Bolt Circle, 4-5/8 in Flange Dia, 3/4 in Flange Thickness, 4 Bolt Holes, 3/8-16 x 1-1/2 in Screw, For Use With: M-HEH-25 HE Hub, 2-1/4 in Overall Length, 3/8 x 3/16 in Keyway, Cast Iron

Application

For conveyor pulley applications

Standards

CEMA Standard

Features

The XT bushing system feature a 2 in/ft taper and helps reduce end disc pre-stressing and offers optimal clamping force
Specially designed taper requires minimal axial movement of the hub and end disc during installation

Specifications

Barrel Diameter:	3.312 in
Bolt Circle Diameter:	3-15/16 in
Bore Diameter:	1-3/4 in
Country of Origin:	US
Flange Diameter:	4-5/8 in
Flange Thickness:	3/4 in
Hub Diameter:	4.7 in
Keyway Size:	3/8 x 3/16 in
Material:	Cast Iron
Number of Bolt Holes:	4
Overall Length:	2-1/4 in
Screw Size:	3/8-16 x 1-1/2 in
Suitable For Use With:	M-HEH-25 HE Hub
