M099899.00 LEE

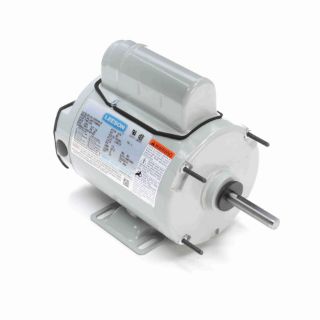

Picture of M099899.00 LEE
Actual Product May Vary From Image

Product Details

Manufacturer:
Leeson Electric
Manufacturer part number:
M099899.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$550.36 / EA

Description

Brand Name

LEESON®

Type

4-Pole

Description

LEESON® AC Motor, 4-Pole, Application Type: Farm Duty Motors, 0.25 hp, 115/230 VAC, 2.6/1.3 A, 60 Hz, 1 ph, 1625 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 48Y Frame, 1/2 in Dia x 2-1/2 in L Shaft, Selective CCW, Service Factor: 1, Ball Bearing, 12 ft-lb, Rigid Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 11.3 in L

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

  • Water-tight connection end compartment
  • Locked double sealed ball bearings
  • All angle mounting
  • Shaft seal on output shaft end
  • Automatic overload protection
  • Permanent split capacitor type

Specifications

Amperage Rating:2.6/1.3 A
Application Type:Farm Duty Motors
Bearing Type:Ball
Country of Origin:CA
Dimensions:11.3 in L
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:48Y
Frequency Rating:60 Hz
Horsepower:0.25 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Rigid Base
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1
Shaft Size:1/2 in Dia x 2-1/2 in L
Speed:1625 rpm
Temperature Rating:40 deg C
Torque Rating:12 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/230 VAC
