M1110015.00 LEE

Name: M1110015.00 LEE
Brand: Leeson Electric
SKU: M1110015.00 LEE
Price: 402.95 USD
Availability: OutOfStock

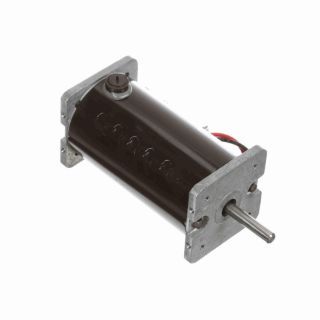

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1110015.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$402.95 / EA

Description

Brand Name

LEESON®

Type

Continuous Duty Precision Sub-FHP

Description

LEESON® DC Motor, Continuous Duty Precision Sub-FHP, Special Features: Permanent Magnet DC Motors, 0.05 kW, 90 VDC, 0.7 A, 3500 rpm, Totally Enclosed Nonvented (TENV), 25 Frame, 0.31 in Dia x 1.5 in L Shaft, Reversible, Service Factor: 1, Ball Bearing, 19.2 in-oz, Round/Square Flange Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 5.58 in L x 3 in W x 2.624 in H

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Permanent Magnet DC Motors

Specifications

Amperage Rating:	0.7 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	5.58 in L x 3 in W x 2.624 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	25
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/Square Flange
Power Rating:	0.05 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.31 in Dia x 1.5 in L
Speed:	3500 rpm
Temperature Rating:	40 deg C
Torque Rating:	19.2 in-oz
Voltage Rating:	90 VDC
