M1110026.00 LEE

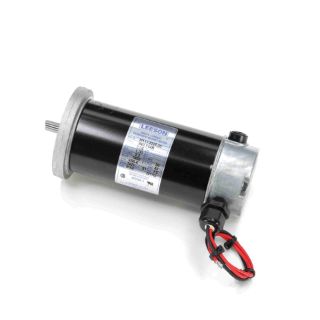

Picture of M1110026.00 LEE
Actual Product May Vary From Image

Product Details

Manufacturer:
Leeson Electric
Manufacturer part number:
M1110026.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® DC Motor, Continuous-Duty, IEC Metric Motors Special Features, 0.06 kW Power, 24 VDC, 3.3 A, 1800 rpm Speed, Totally Enclosed Nonvented (TENV) Enclosure, 56D Frame, 0.38 in Dia x 0.79 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 45 in-oz Torque, B14 Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 3.14 in Dia x 7.13 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:3.3 A
Bearing Type:Ball
Country of Origin:US
Dimensions:3.14 in Dia x 7.13 in L
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:56D
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:B14
Power Rating:0.06 kW
Rotation:Reversible
Service Factor:1
Shaft Size:0.38 in Dia x 0.79 in L
Speed:1800 rpm
Temperature Rating:40 deg C
Torque Rating:45 in-oz
Voltage Rating:24 VDC
