M1115029.00 LEE

Name: M1115029.00 LEE
Brand: Leeson Electric
SKU: M1115029.00 LEE
Price: 931.89 USD
Availability: OutOfStock

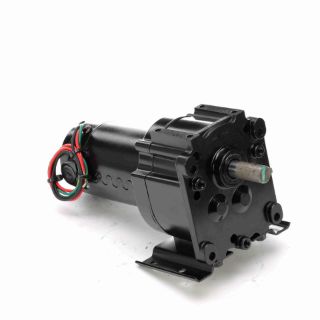

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1115029.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$931.89 / EA

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: P300, 90 VDC, 0.54 A Full Load Amperage, 0.05 hp, 109 rpm Maximum, 0.63 in Shaft Dia, 1-1/2 in Shaft Length, Reversible, 27 in-lb, 16:1 Gear Ratio, Helical/Spur Gear, Ball Bearing, 224 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Steel Housing, 9.91 in L x 6.29 in H

Standards

CSA Certified | CE Certified | UL Listed

Features

Precision machined in-line steel gears
Lubrication is permanent semi-fluid grease and reducing possibility of leakage
Shafts are hardened steel
Sub-fractional horsepower DC motors
Performance matched for continuous duty service
Output shafts have needle bearings to handle high load capacities

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	9.91 in L x 6.29 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Full Load Amperage:	0.54 A
Gear Ratio:	16:1
Gear Type:	Helical/Spur
Horsepower:	0.05 hp
Housing Material:	Steel
Insulation Type:	Class F
Maximum Speed:	109 rpm
Mounting Type:	Special
Overhung Load:	224 lb
Rotation Type:	Reversible
Series:	P300
Shaft Diameter:	0.63 in
Shaft Length:	1-1/2 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	27 in-lb
Voltage Rating:	90 VDC
