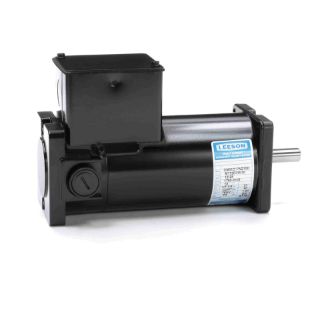

M1120044.00 LEE

Name: M1120044.00 LEE
Brand: Leeson Electric
SKU: M1120044.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1120044.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage Sub-FHP

Description

LEESON® DC Motor, 4-Pole Continuous Duty Low Voltage Sub-FHP, Special Features: Permanent Magnet DC Motors, 0.1 to 0.19 kW, 12 to 24 VDC, 13 A, 1750 to 3500 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 31 Frame, 0.5 in Dia x 1.5 in L Shaft, Reversible, Service Factor: 1, Ball Bearing, 82 in-oz, Round/Square Flange Mount, 40 deg C, Insulation Class: Class F, 8.95 in L x 4.16 in W x 5.012 in H

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Permanent Magnet DC Motors

Specifications

Amperage Rating:	13 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	8.95 in L x 4.16 in W x 5.012 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	31
Insulation Class:	Class F
Mounting Type:	Round/Square Flange
Number of Speeds:	1
Power Rating:	0.1 to 0.19 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.5 in Dia x 1.5 in L
Speed:	1750 to 3500 rpm
Temperature Rating:	40 deg C
Torque Rating:	82 in-oz
Voltage Rating:	12 to 24 VDC
