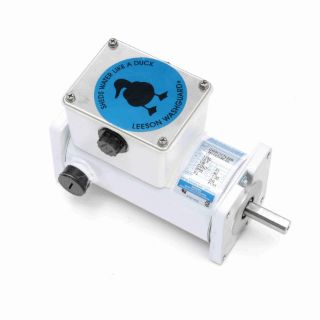

M1120182.00 LEE

Name: M1120182.00 LEE
Brand: Leeson Electric
SKU: M1120182.00 LEE
Price: 787.20 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1120182.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$787.20 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty Sub-FHP

Description

LEESON® Washguard® DC Motor, 4-Pole Continuous Duty Sub-FHP, Special Features: Permanent Magnet DC Motors, Washdown Duty Motors, 0.1 kW, 12 VDC, 10.5 A, 1750 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 31 Frame, 0.5 in Dia x 1.5 in L Shaft, Reversible, Service Factor: 1, Ball Bearing, 72 in-oz, Square Flange Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 9.57 in L x 4.33 in W x 4.952 in H

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed | USDA Approved

Features

Permanent Magnet DC Motors, Washdown Duty Motors

Specifications

Amperage Rating:	10.5 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	9.57 in L x 4.33 in W x 4.952 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	31
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Square Flange
Number of Speeds:	1
Power Rating:	0.1 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.5 in Dia x 1.5 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	72 in-oz
Voltage Rating:	12 VDC
