M1125002.00 LEE

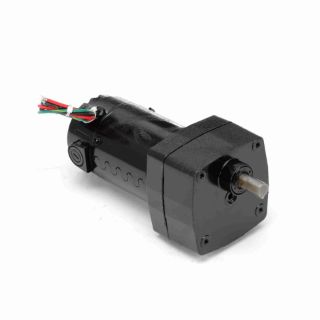

Picture of M1125002.00 LEE
Actual Product May Vary From Image

Product Details

Manufacturer:
Leeson Electric
Manufacturer part number:
M1125002.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$689.65 / EA

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: PZ Series, 90 VDC, 0.8 A Full Load Amperage, 0.06 hp, 3, 30 rpm Maximum, 1/2 in Shaft Dia, 1.56 in Shaft Length, Reversible, 100 in-lb, 60:1 Gear Ratio, Helical/Spur Gear, Permanent Split Capacitor Motor, Ball Bearing, 155 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Steel Housing, 8.74 in L x 3.75 in W

Standards

CSA Certified | CE Certified | UL Listed

Features

  • Precision machined in-line steel gears
  • Lubrication is permanent semi-fluid grease and reducing possibility of leakage
  • Shafts are hardened steel
  • These gear motors are designed for mounting at any angle
  • Overhung load capacities shown are at center of output shaft
  • Performance matched for continuous duty
  • Output shafts have needle bearings to handle high load capacities
  • Optional conduit box and PZ gearmotor mounting brackets available

Specifications

Bearing Type:Ball
Country of Origin:US
Dimensions:8.74 in L x 3.75 in W
Enclosure Type:Totally Enclosed Nonvented (TENV)
Full Load Amperage:0.8 A
Gear Ratio:60:1
Gear Type:Helical/Spur
Horsepower:0.06 hp
Housing Material:Steel
Insulation Type:Class F
Maximum Speed:30 rpm
Motor Type:Permanent Split Capacitor
Mounting Type:Special
Overhung Load:155 lb
Phase:3
Rotation Type:Reversible
Series:PZ Series
Shaft Diameter:1/2 in
Shaft Length:1.56 in
Temperature Rating:40 deg C Ambient
Torque Rating:100 in-lb
Voltage Rating:90 VDC
