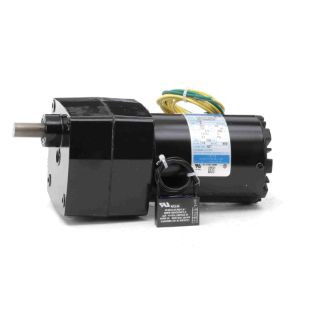

M1125050.00 LEE

Name: M1125050.00 LEE
Brand: Leeson Electric
SKU: M1125050.00 LEE
Price: 912.52 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1125050.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$912.52 / EA

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: PZ Series, 115 VAC, 0.4 A Full Load Amperage, 0.01 hp, 60 Hz, 1, 2 rpm Maximum, 1/2 in Shaft Dia, 1 in Shaft Length, Reversible, 100 in-lb, 900:1 Gear Ratio, Helical/Spur Gear, Permanent Split Capacitor Motor, Ball Bearing, 155 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Steel Housing, 8.71 in L x 5.3 in W x 3.97 in H

Standards

CSA Certified | UL Listed

Features

Precision machined in-line steel gears
Lubrication is permanent semi-fluid grease and reducing possibility of leakage
Output shafts have needle bearings for high load capacities
Shafts are hardened steel
These gear motors are designed for mounting at any angle
Overhung load capacities shown are at center of output shaft
Sub-fractional horsepower AC motors

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	8.71 in L x 5.3 in W x 3.97 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frequency Rating:	60 Hz
Full Load Amperage:	0.4 A
Gear Ratio:	900:1
Gear Type:	Helical/Spur
Horsepower:	0.01 hp
Housing Material:	Steel
Insulation Type:	Class F
Maximum Speed:	2 rpm
Motor Type:	Permanent Split Capacitor
Mounting Type:	Special
Overhung Load:	155 lb
Phase:	1
Rotation Type:	Reversible
Series:	PZ Series
Shaft Diameter:	1/2 in
Shaft Length:	1 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	100 in-lb
Voltage Rating:	115 VAC
