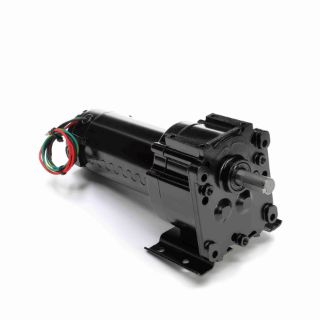

Actual Product May Vary From Image

M1125073.00 LEE

Name: M1125073.00 LEE
Brand: Leeson Electric
SKU: M1125073.00 LEE
Price: 809.14 USD
Availability: OutOfStock

LEESON® M1125073.00 P300 Parallel Shaft SCR Rated DC Gearmotor, 90 VDC, 1/8 hp, 19:1 Gear Ratio, 94 rpm Max, 77 in-lb Torque

Manufacturer: Leeson Electric

Manufacturer part number: M1125073.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$809.14

Qty:

Product Details

Brand Name

LEESON®

Type

Parallel Shaft SCR Rated

Description

The LEESON® brand spans more than 6000 stock AC and DC motors gearmotors and variable speed control solutions. All are built for rugged commercial and industrial applications. Whether you need thousands of motors for OEM applications or a single replacement motor, count on our twenty three stocking warehouses in the USA to get it there right when you need it. Whether you need a motor that withstands extreme temperatures, utilizes a unique mount or other requirement, we have solutions. Look to LEESON® brand motors for innovative custom solutions, and personalized service through your local sales office.

LEESON® DC Gearmotor, Parallel Shaft SCR Rated, Series: P300, 90 VDC, 1.3 A Full Load Amperage, 1/8 hp, 94 rpm Maximum, 5/8 in Shaft Diameter, 0.661 in Shaft Length, 77 in-lb Torque, 19:1 Gear Ratio, P302-30E Gear, Needle Bearing, 77 lb Overhung Load, 40 deg C, Class F3 Insulation, TENV Enclosure, Steel Housing Material, 11.54 in L x 4 in W x 5.13 in H Dimensions

Application

For mounting at any angle, but motor below the reducer should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail

Standards

CE | CSA Certified | UL Listed

Features

Precision machined in-line steel gears
First stage steel helical gear followed by spur-type gears
Lubrication is permanent semi-fluid grease, reducing possibility of leakage
Output shafts have needle bearings for high load capacities
Shafts are hardened steel

Specifications

Bearing Type:	Needle
Country of Origin:	US
Dimensions:	11.54 in L x 4 in W x 5.13 in H
Enclosure Type:	TENV
Full Load Amperage:	1.3 A
Gear Ratio:	19:1
Gear Type:	P302-30E
Horsepower:	1/8 hp
Housing Material:	Steel
Insulation Type:	Class F3
Maximum Speed:	94 rpm
Overhung Load:	77 lb
Series:	P300
Shaft Diameter:	5/8 in
Shaft Length:	0.661 in
Temperature Rating:	40 deg C
Torque Rating:	77 in-lb
Voltage Rating:	90 VDC
