M1125263.00 LEE

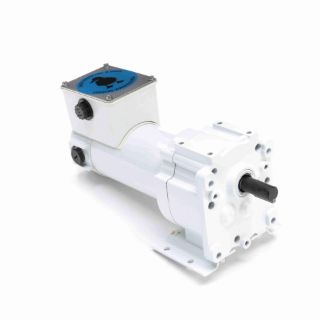

Picture of M1125263.00 LEE
Actual Product May Vary From Image

Product Details

Manufacturer:
Leeson Electric
Manufacturer part number:
M1125263.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,031.98 / EA

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Washguard® Gear Motor, Parallel Shaft Continuous Duty, Series: P300, 90 VDC, 1.6 A Full Load Amperage, 0.13 hp, 51 rpm Maximum, 0.63 in Shaft Dia, 1-1/2 in Shaft Length, Reversible, 130 in-lb, 35:1 Gear Ratio, Helical/Spur Gear, Ball Bearing, 277 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), White Epoxy Painted, 11.94 in L x 6.35 in H

Standards

CSA Certified | CE Certified | UL Listed | USDA Approved

Features

  • 303 stainless steel shaft resists corrosion
  • Lubricated spring loaded contact seals prevent moisture from entering the motor
  • Double sealed and oversize bearings with high temperature lubricant
  • Exterior and interior components protected against moisture, acids, alkalis and oil
  • Nylon seals at bolt heads for superior sealing
  • O-ring sealed brush covers
  • IP55 protection
  • Cast conduit box for superior sealing includes threaded conduit entrance drain holes nitrile gaskets 304 stainless steel conduit box cover stainless steel hardware
  • Performance matched for continuous duty service
  • Precision machined in-line steel gears
  • Lubrication is permanent semi-fluid grease, reducing possibility of leakage
  • Output shafts have needle bearings to handle high load capacities

Specifications

Bearing Type:Ball
Country of Origin:US
Dimensions:11.94 in L x 6.35 in H
Enclosure Type:Totally Enclosed Nonvented (TENV)
Finish:White Epoxy Painted
Full Load Amperage:1.6 A
Gear Ratio:35:1
Gear Type:Helical/Spur
Horsepower:0.13 hp
Insulation Type:Class F
Maximum Speed:51 rpm
Mounting Type:Special
Overhung Load:277 lb
Rotation Type:Reversible
Series:P300
Shaft Diameter:0.63 in
Shaft Length:1-1/2 in
Temperature Rating:40 deg C Ambient
Torque Rating:130 in-lb
Voltage Rating:90 VDC
