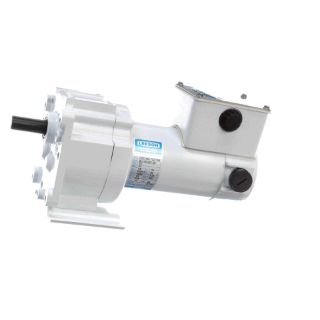

M1125267.00 LEE

Name: M1125267.00 LEE
Brand: Leeson Electric
SKU: M1125267.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1125267.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Washguard® Gear Motor, Parallel Shaft Continuous Duty, Series: P300, 12 VDC, 11 A Full Load Amperage, 0.13 hp, 31 rpm Maximum, 0.63 in Shaft Dia, 1-1/2 in Shaft Length, Reversible, 220 in-lb, 58:1 Gear Ratio, Helical/Spur Gear, Ball Bearing, 327 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), White Epoxy Painted, 11.44 in L x 4.96 in W x 6.35 in H

Standards

CSA Certified | UL Listed | USDA Approved

Features

303 stainless steel shaft resists corrosion
Lubricated spring loaded contact seals prevent moisture from entering the motor
Double sealed and oversize bearings with high temperature lubricant
Exterior and interior components protected against moisture, acids, alkalis and oil
Nylon seals at bolt heads for superior sealing
O-ring sealed brush covers
IP55 protection
Cast conduit box for superior sealing includes threaded conduit entrance drain holes nitrile gaskets 304 stainless steel conduit box cover stainless steel hardware

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.44 in L x 4.96 in W x 6.35 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Finish:	White Epoxy Painted
Full Load Amperage:	11 A
Gear Ratio:	58:1
Gear Type:	Helical/Spur
Horsepower:	0.13 hp
Insulation Type:	Class F
Maximum Speed:	31 rpm
Mounting Type:	Special
Overhung Load:	327 lb
Rotation Type:	Reversible
Series:	P300
Shaft Diameter:	0.63 in
Shaft Length:	1-1/2 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	220 in-lb
Voltage Rating:	12 VDC
