M1125272.00 LEE

Name: M1125272.00 LEE
Brand: Leeson Electric
SKU: M1125272.00 LEE
Price: 1,133.61 USD
Availability: OutOfStock

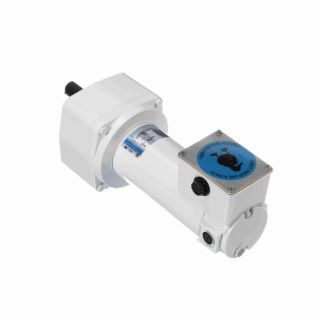

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1125272.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,133.61 / EA

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Washguard® Gear Motor, Parallel Shaft Continuous Duty, Series: PE350, 90 VDC, 2.4 A Full Load Amperage, 0.25 hp, 3, 500 rpm Maximum, 3/4 in Shaft Dia, 1.62 in Shaft Length, Reversible, 25 in-lb, 5:1 Gear Ratio, Helical/Spur Gear, Permanent Split Capacitor Motor, Ball Bearing, 194 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Steel Housing, White Epoxy Painted, 13.84 in L x 6 in W x 6.7 in H

Application

Wet and High Humidity Applications

Standards

CSA Certified | CE Certified | UL Listed | USDA Approved

Features

Gearbox output shafts are coated with Mirolon 3300 fortified PTFE for superior corrosion resistance
Frame, end shields, armature and interior components protected by enamel and polyester compounds for resistance to moisture, acids, alkalis and oil
Precision machined in-line steel gears
Lubrication is permanent semi-fluid grease and reducing possibility of leakage
Output shafts have needle bearings for high load capacities
Gearbox shafts are hardened steel
Cast conduit box with threaded conduit holes and nitrile gaskets keep water out
Conduit box cover is made from 304 stainless steel
For any condensation that may accumulate inside the motor, one way stainless steel vapor vent is provided
All hardware is stainless steel, painted with white epoxy for superior corrosion resistance and protection
Machined fits between the end bells and motor frame are sealed with gaskets
Thru-bolt heads and nuts sealed with fiber washers, O-rings under each threaded brush cover
Rugged die cast aluminum gear housing supplies maximum gear and bearing support
Performance matched for continuous duty service
Heavy duty industrial oil seals keep lubricant in and dirt out
All gearing designed and rated to AGMA Class 9 Standards, and to withstand momentary shock overload of 200%

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	13.84 in L x 6 in W x 6.7 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Finish:	White Epoxy Painted
Full Load Amperage:	2.4 A
Gear Ratio:	5:1
Gear Type:	Helical/Spur
Horsepower:	0.25 hp
Housing Material:	Steel
Insulation Type:	Class F
Maximum Speed:	500 rpm
Motor Type:	Permanent Split Capacitor
Mounting Type:	Special
Overhung Load:	194 lb
Phase:	3
Rotation Type:	Reversible
Series:	PE350
Shaft Diameter:	3/4 in
Shaft Length:	1.62 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	25 in-lb
Voltage Rating:	90 VDC
