M1125280.00 LEE

Name: M1125280.00 LEE
Brand: Leeson Electric
SKU: M1125280.00 LEE
Availability: OutOfStock

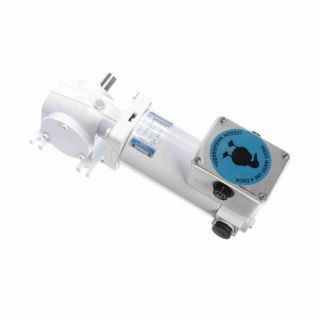

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1125280.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Right Angle Continuous Duty

Description

LEESON® Washguard® Gear Motor, Right Angle Continuous Duty, 12 VDC, 28 A Full Load Amperage, 0.25 hp, 62 rpm Maximum, 0.63 in Shaft Dia, 1-1/2 in Shaft Length, Reversible, 135 in-lb, 40:1 Gear Ratio, Worm Gear, Ball Bearing, 235 lb Overhung Load, Special Mount, 40 deg C, Class F Insulation, Totally Enclosed Nonvented (TENV), Aluminum Housing, White Epoxy Painted, 12.36 in L x 6.6 in H

Standards

CSA Certified | UL Listed

Features

303 stainless steel gearbox output shaft
Frame, end shields, armature and interior components protected by enamel and polyester compounds for resistance to moisture, acids, alkalis and oil
Cast conduit box with threaded conduit holes and nitrile gaskets keep water out
Conduit box cover is made from 304 stainless steel
For any condensation that may accumulate inside the motor, one way stainless steel vapor vent is provided
All hardware is stainless steel, painted with white epoxy for superior corrosion resistance and protection
Machined fits between the end bells and motor frame are sealed with gaskets
Thru-bolt heads and nuts sealed with fiber washers
O-rings under each threaded brush cover
Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
Lubrication is permanent with an oil bath
Output shaft is field interchangeable from left hand to right hand style by reassembly
IP55 protection

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.36 in L x 6.6 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Finish:	White Epoxy Painted
Full Load Amperage:	28 A
Gear Ratio:	40:1
Gear Type:	Worm
Horsepower:	0.25 hp
Housing Material:	Aluminum
Insulation Type:	Class F
Maximum Speed:	62 rpm
Mounting Type:	Special
Overhung Load:	235 lb
Rotation Type:	Reversible
Shaft Diameter:	0.63 in
Shaft Length:	1-1/2 in
Temperature Rating:	40 deg C
Torque Rating:	135 in-lb
Voltage Rating:	12 VDC
