M1125282.00 LEE

Name: M1125282.00 LEE
Brand: Leeson Electric
SKU: M1125282.00 LEE
Availability: OutOfStock

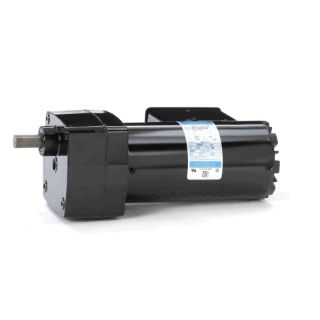

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1125282.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: PZ Series, 208 to 230 VAC, 0.4 A Full Load Amperage, 0.07 hp, 60/50 Hz, 3, 19 rpm Maximum, 1/2 in Shaft Dia, 1 in Shaft Length, Reversible, 100 in-lb, 90:1 Gear Ratio, Helical/Spur Gear, Permanent Split Capacitor Motor, Ball Bearing, 155 lb Overhung Load, Special Mount, 40 deg C Ambient, Class F Insulation, Totally Enclosed Nonvented (TENV), Black Enamel Painted, 10.83 in L x 5.3 in W x 3.75 in H

Standards

CSA Certified | UL Listed

Features

Designed with the exclusive inverter rated insulation system (IRIS)
Provides superior protection against voltage spikes induced by variable frequency drives
Double shielded motor ball bearings
Needle bearings in the parallel shaft gearboxes
Designed with high temperature insulation (Class F) to prevent overheating when operated with a PWM inverter down to a 10:1 speed range from the printed gear motor speed
These gear motors are designed for mounting at any angle
Overhung load capacities shown are at center of output shaft

Includes

Steel Conduit Box

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10.83 in L x 5.3 in W x 3.75 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Finish:	Black Enamel Painted
Frequency Rating:	60/50 Hz
Full Load Amperage:	0.4 A
Gear Ratio:	90:1
Gear Type:	Helical/Spur
Horsepower:	0.07 hp
Insulation Type:	Class F
Maximum Speed:	19 rpm
Motor Type:	Permanent Split Capacitor
Mounting Type:	Special
Overhung Load:	155 lb
Phase:	3
Rotation Type:	Reversible
Series:	PZ Series
Shaft Diameter:	1/2 in
Shaft Length:	1 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	100 in-lb
Voltage Rating:	208 to 230 VAC
