M1130152.00 LEE

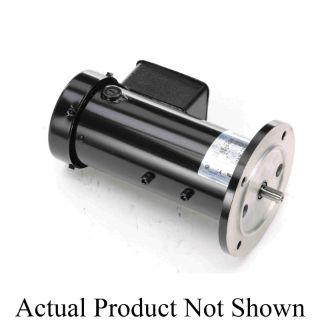

Picture of M1130152.00 LEE
Actual Product May Vary From Image

Product Details

Manufacturer:
Leeson Electric
Manufacturer part number:
M1130152.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® DC Motor, 2-Pole Continuous Duty, Special Features: IEC Metric Motors, 0.25 kW, 180 VDC, 1.7 A, 3000 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 63D Frame, 0.38 in Dia x 0.9 in L Shaft, Reversible, Service Factor: 1, Ball Bearing, 81.1 in-oz, B5 Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 5.51 in Dia x 8.78 in L x 5.74 in H

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:1.7 A
Bearing Type:Ball
Country of Origin:US
Dimensions:5.51 in Dia x 8.78 in L x 5.74 in H
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:63D
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:B5
Number of Speeds:1
Power Rating:0.25 kW
Rotation:Reversible
Service Factor:1
Shaft Size:0.38 in Dia x 0.9 in L
Speed:3000 rpm
Temperature Rating:40 deg C
Torque Rating:81.1 in-oz
Voltage Rating:180 VDC
