M1130297.00 LEE

Name: M1130297.00 LEE
Brand: Leeson Electric
SKU: M1130297.00 LEE
Price: 753.96 USD
Availability: OutOfStock

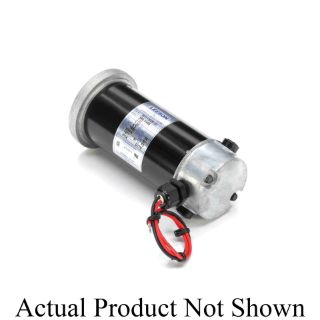

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1130297.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$753.96 / EA

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® DC Motor, 2-Pole Continuous Duty, IEC Metric Motors Special Features, 0.18 kW Power, 24 VDC, 10 A, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 63D Frame, 0.44 in Dia x 0.9 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 135 in-oz Torque, B14 Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 8.75 in L x 4.56 in W x 5.75 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

IEC Metric Motors

Specifications

Amperage Rating:	10 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	8.75 in L x 4.56 in W x 5.75 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	63D
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	B14
Number of Speeds:	1
Power Rating:	0.18 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.44 in Dia x 0.9 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Torque Rating:	135 in-oz
Voltage Rating:	24 VDC
