M1135043.00 LEE

Name: M1135043.00 LEE
Brand: Leeson Electric
SKU: M1135043.00 LEE
Price: 938.52 USD
Availability: OutOfStock

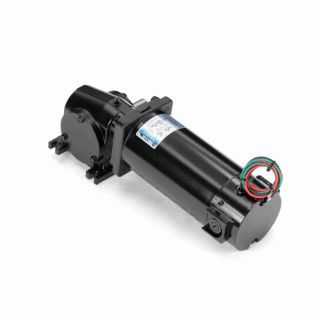

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1135043.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$938.52 / EA

Description

Brand Name

LEESON®

Type

Right Angle Continuous Duty

Description

LEESON® Gear Motor, Right Angle Continuous Duty, 90 VDC, 2.3 A Full Load Amperage, 0.25 hp, 83 rpm Maximum, 0.63 in Shaft Dia, 1.8 in Shaft Length, Reversible, 125 in-lb, 30:1 Gear Ratio, Worm Gear, Ball Bearing, 235 lb Overhung Load, Special Mount, 40 deg C, Class H Insulation, Totally Enclosed Nonvented (TENV), Aluminum Housing, 10.64 in L x 6.58 in H

Standards

CSA Certified | CE Certified | UL Listed

Features

Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
Lubrication is permanent with an oil bath
Output shaft is field interchangeable from left hand to right hand style by reassembly
Precision machined aluminum gear housing
Performance matched for continuous duty service
Lubrication is permanent semi-fluid grease, reducing possibility of leakage

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10.64 in L x 6.58 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Full Load Amperage:	2.3 A
Gear Ratio:	30:1
Gear Type:	Worm
Horsepower:	0.25 hp
Housing Material:	Aluminum
Insulation Type:	Class H
Maximum Speed:	83 rpm
Mounting Type:	Special
Overhung Load:	235 lb
Rotation Type:	Reversible
Shaft Diameter:	0.63 in
Shaft Length:	1.8 in
Temperature Rating:	40 deg C
Torque Rating:	125 in-lb
Voltage Rating:	90 VDC
