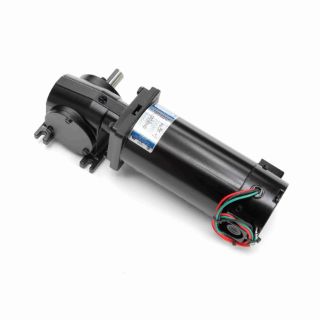

M1135046.00 LEE

Name: M1135046.00 LEE
Brand: Leeson Electric
SKU: M1135046.00 LEE
Price: 880.94 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1135046.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$880.94 / EA

Description

Brand Name

LEESON®

Type

Right Angle SCR Rated

Description

The LEESON® brand spans more than 6000 stock AC and DC motors gearmotors and variable speed control solutions. All are built for rugged commercial and industrial applications. Whether you need thousands of motors for OEM applications or a single replacement motor, count on our twenty three stocking warehouses in the USA to get it there right when you need it. Whether you need a motor that withstands extreme temperatures, utilizes a unique mount or other requirement, we have solutions. Look to LEESON® brand motors for innovative custom solutions, and personalized service through your local sales office.

LEESON® DC Gearmotor, Right Angle SCR Rated, Series: 13 Series, 90 VDC, 2.3 A Full Load Amperage, 1/4 hp, 500 rpm Maximum, 5/8 in Shaft Dia, 1-1/2 in Shaft Length, 30 in-lb, 5:1 Gear Ratio, 13F05-34G Gear, Ball Bearing, 235 lb Overhung Load, 40 deg C, Class H Insulation, TENV, Steel Housing, 12.64 in L x 4 in W x 4.76 in H

Application

For mounting at any angle, but motor below the reducer should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail

Standards

CE Certified | CSA Certified | UL Listed

Features

Worm type right angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
Precision machined aluminum gear housing
Lubrication is permanent with an oil bath
Gearbox has all ball bearings
Output shaft is field interchangeable from left hand to right hand style by reassembly
Performance matched for continuous duty service
Lubrication is permanent semi-fluid grease, reducing possibility of leakage

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.64 in L x 4 in W x 4.76 in H
Enclosure Type:	TENV
Full Load Amperage:	2.3 A
Gear Ratio:	5:1
Gear Type:	13F05-34G
Horsepower:	1/4 hp
Housing Material:	Steel
Insulation Type:	Class H
Maximum Speed:	500 rpm
Overhung Load:	235 lb
Series:	13 Series
Shaft Diameter:	5/8 in
Shaft Length:	1-1/2 in
Temperature Rating:	40 deg C
Torque Rating:	30 in-lb
Voltage Rating:	90 VDC
