M1135055.00 LEE

Name: M1135055.00 LEE
Brand: Leeson Electric
SKU: M1135055.00 LEE
Availability: OutOfStock

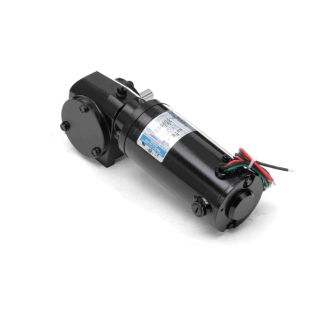

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1135055.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Right Angle Continuous Duty

Description

LEESON® Gear Motor, Right Angle Continuous Duty, 180 VDC, 0.53 A Full Load Amperage, 0.08 hp, 125 rpm Maximum, 0.63 in Shaft Dia, 1.83 in Shaft Length, Reversible, 18 in-lb, 20:1 Gear Ratio, Worm Gear, Ball Bearing, 235 lb Overhung Load, Special Mount, 40 deg C, Class H Insulation, Totally Enclosed Nonvented (TENV), Aluminum Housing, 9.64 in L x 6.61 in H

Standards

CSA Certified | CE Certified | UL Listed

Features

Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
Lubrication is permanent with an oil bath
Output shaft is field interchangeable from left hand to right hand style by reassembly

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	9.64 in L x 6.61 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Full Load Amperage:	0.53 A
Gear Ratio:	20:1
Gear Type:	Worm
Horsepower:	0.08 hp
Housing Material:	Aluminum
Insulation Type:	Class H
Maximum Speed:	125 rpm
Mounting Type:	Special
Overhung Load:	235 lb
Rotation Type:	Reversible
Shaft Diameter:	0.63 in
Shaft Length:	1.83 in
Temperature Rating:	40 deg C
Torque Rating:	18 in-lb
Voltage Rating:	180 VDC
