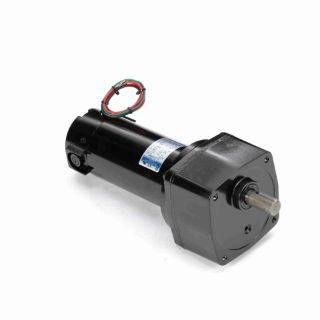

M1135116.00 LEE

Name: M1135116.00 LEE
Brand: Leeson Electric
SKU: M1135116.00 LEE
Price: 1,012.89 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1135116.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,012.89 / EA

Description

Brand Name

LEESON®

Type

Parallel Shaft

Description

The LEESON® brand spans more than 6000 stock AC and DC motors gearmotors and variable speed control solutions. All are built for rugged commercial and industrial applications. Whether you need thousands of motors for OEM applications or a single replacement motor, count on our twenty three stocking warehouses in the USA to get it there right when you need it. Whether you need a motor that withstands extreme temperatures, utilizes a unique mount or other requirement, we have solutions. Look to LEESON® brand motors for innovative custom solutions, and personalized service through your local sales office.

LEESON® DC Gearmotor, Parallel Shaft, Series: PE350, 90 VDC, 2 A Full Load Amperage, 1/4 hp, 250 rpm Maximum, 3/4 in Shaft Diameter, 3/8 in Shaft Length, 45 in-lb Torque, 10:1 Gear Ratio, P352-34 Gear, Needle Bearing, 45 lb Overhung Load, 40 deg C, Class F Insulation, TENV Enclosure, Die Cast Aluminum Housing Material, 13.31 in L x 6 in W x 6.75 in H Dimensions

Application

For mounting at any angle, but motor below the reducer should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail

Standards

CSA Certified | UL Listed

Features

Rugged die cast aluminum gear housing for maximum gear and bearing support
Precision machined gearing, hardened for maximum load capability
All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%
Oversized output bearings for greater overhung load capacity and long life
High carbon alloy output shaft provides maximum strength and rigidity
All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
Heavy duty industrial oil seals keep lubricant in and dirt out
Gears and bearings are splash lubricated with permanent, heavy duty gear oil

Specifications

Bearing Type:	Needle
Country of Origin:	US
Dimensions:	13.31 in L x 6 in W x 6.75 in H
Enclosure Type:	TENV
Full Load Amperage:	2 A
Gear Ratio:	10:1
Gear Type:	P352-34
Horsepower:	1/4 hp
Housing Material:	Die Cast Aluminum
Insulation Type:	Class F
Maximum Speed:	250 rpm
Overhung Load:	45 lb
Series:	PE350
Shaft Diameter:	3/4 in
Shaft Length:	3/8 in
Temperature Rating:	40 deg C
Torque Rating:	45 in-lb
Voltage Rating:	90 VDC
