M1135284.00 LEE

Name: M1135284.00 LEE
Brand: Leeson Electric
SKU: M1135284.00 LEE
Availability: OutOfStock

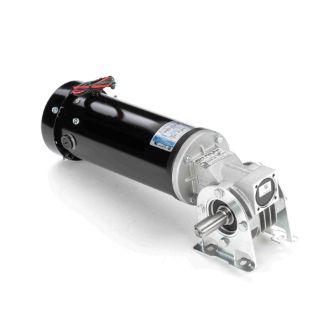

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1135284.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Right Angle Continuous Duty

Description

LEESON® Gear Motor, Right Angle Continuous Duty, 12 VDC, 15 A Full Load Amperage, 0.13 hp, 45 rpm Maximum, 0.63 in Shaft Dia, 1-1/2 in Shaft Length, Reversible, 94 in-lb, 39:1 Gear Ratio, Worm Gear, Ball Bearing, Special Mount, 40 deg C, Class H Insulation, Totally Enclosed Nonvented (TENV), Die Cast Aluminum Alloy Housing, 10.57 in L x 6.92 in W

Standards

CSA Certified | UL Listed

Features

Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
1-piece die cast aluminum alloy housing is vacuum impregnated with Retinol RT for protection and sealing
Lightweight gearbox combines high tensile strength along with being precision machined for alignment of bearings and gearing
High temperature nitrile seals for optimum seal life
Gearbox provided with solid output shaft, but can be converted to a hollow output shaft
T-base feet provided are removable to convert to face mounting

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10.57 in L x 6.92 in W
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Full Load Amperage:	15 A
Gear Ratio:	39:1
Gear Type:	Worm
Horsepower:	0.13 hp
Housing Material:	Die Cast Aluminum Alloy
Insulation Type:	Class H
Maximum Speed:	45 rpm
Mounting Type:	Special
Rotation Type:	Reversible
Shaft Diameter:	0.63 in
Shaft Length:	1-1/2 in
Temperature Rating:	40 deg C
Torque Rating:	94 in-lb
Voltage Rating:	12 VDC
