M1140172.00 LEE

Name: M1140172.00 LEE
Brand: Leeson Electric
SKU: M1140172.00 LEE
Price: 841.95 USD
Availability: OutOfStock

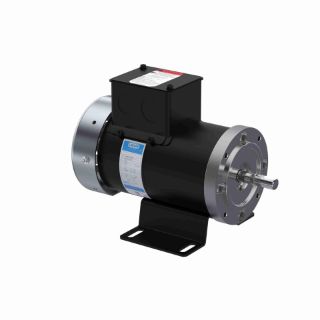

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1140172.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$841.95 / EA

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Inverter Ready Special Features, 0.25 hp, 230 VAC, 1.1 A, 60 Hz Frequency, 3 ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, S48C Frame, 1/2 in Dia x 1-1/2 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 12 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 10:1 Variable Torque Speed, 9.19 in L Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:	1.1 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	9.19 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	S48C
Frequency Rating:	60 Hz
Horsepower:	0.25 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3
Rotation:	Reversible
Service Factor:	1
Shaft Size:	1/2 in Dia x 1-1/2 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	12 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230 VAC
