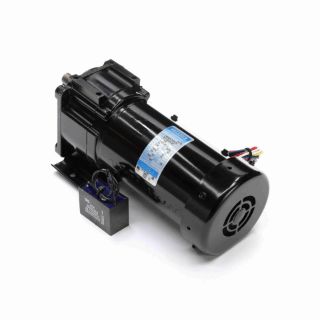

M1145033.00 LEE

Name: M1145033.00 LEE
Brand: Leeson Electric
SKU: M1145033.00 LEE
Price: 958.32 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1145033.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$958.32 / EA

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: P240, 115/230 VAC, 3/1.5 A Full Load Amperage, 0.16 hp, 60 Hz Frequency, 1 ph, 60 rpm Maximum, 0.63 in Shaft Diameter, 1-1/2 in Shaft Length, Reversible Rotation, 219 in-lb Torque, 29:1 Gear Ratio, Helical/Spur Gear, Permanent Split Capacitor Motor, Ball Bearing, 268 lb Overhung Load, Special Mounting, 40 deg C Ambient, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, Steel Housing Material, 12.13 in L x 5.13 in H Dimensions

Standards

CSA Certified | CE Certified | UL Listed

Features

Precision machined in-line steel gears
Lubrication is permanent semi-fluid grease and reducing possibility of leakage
Output shafts have needle bearings for high load capacities
Shafts are hardened steel
Sub-fractional horsepower AC motors
500 Hz standard and 1000 Hz optional output frequency
Permanent split capacitor design rated for 115/230VAC 60/50 HZ input
First stage steel helical gear followed by spur-type gears
Optional conduit box available

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.13 in L x 5.13 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frequency Rating:	60 Hz
Full Load Amperage:	3/1.5 A
Gear Ratio:	29:1
Gear Type:	Helical/Spur
Horsepower:	0.16 hp
Housing Material:	Steel
Insulation Type:	Class F
Maximum Speed:	60 rpm
Motor Type:	Permanent Split Capacitor
Mounting Type:	Special
Overhung Load:	268 lb
Phase:	1
Rotation Type:	Reversible
Series:	P240
Shaft Diameter:	0.63 in
Shaft Length:	1-1/2 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	219 in-lb
Voltage Rating:	115/230 VAC
