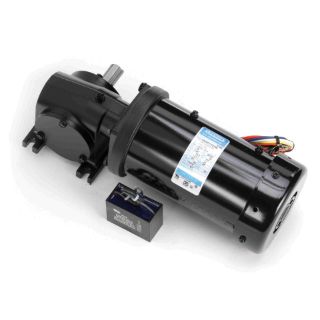

M1145040.00 LEE

Name: M1145040.00 LEE
Brand: Leeson Electric
SKU: M1145040.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1145040.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Right Angle Continuous Duty

Description

LEESON® Gear Motor, Right Angle Continuous Duty, 115/230 VAC, 2.8/1.4 A Full Load Amperage, 0.16 hp, 60 Hz Frequency, 1 ph, 170 rpm Maximum, 0.63 in Shaft Diameter, 2.74 in Shaft Length, Reversible Rotation, 43 in-lb Torque, 10:1 Gear Ratio, Worm Gear, Permanent Split Capacitor Motor, Ball Bearing, 235 lb Overhung Load, Special Mounting, 40 deg C, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, Aluminum Housing Material, 12.31 in L x 5.81 in W x 5.2 in H Dimensions

Standards

CSA Certified | CE Certified | UL Listed

Features

Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
Lubrication is permanent with an oil bath
Output shaft is field interchangeable from left hand to right hand style by reassembly

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.31 in L x 5.81 in W x 5.2 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frequency Rating:	60 Hz
Full Load Amperage:	2.8/1.4 A
Gear Ratio:	10:1
Gear Type:	Worm
Horsepower:	0.16 hp
Housing Material:	Aluminum
Insulation Type:	Class F
Maximum Speed:	170 rpm
Motor Type:	Permanent Split Capacitor
Mounting Type:	Special
Overhung Load:	235 lb
Phase:	1
Rotation Type:	Reversible
Shaft Diameter:	0.63 in
Shaft Length:	2.74 in
Temperature Rating:	40 deg C
Torque Rating:	43 in-lb
Voltage Rating:	115/230 VAC
