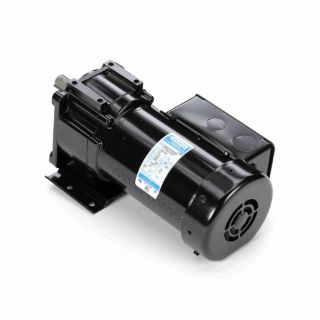

M1145125.00 LEE

Name: M1145125.00 LEE
Brand: Leeson Electric
SKU: M1145125.00 LEE
Price: 818.43 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1145125.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$818.43 / EA

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: P240, 208 to 230 VAC, 0.72 A Full Load Amperage, 0.17 hp, 60/50 Hz Frequency, 3 ph, 90 rpm Maximum, 0.63 in Shaft Diameter, 1-1/2 in Shaft Length, Reversible Rotation, 103 in-lb Torque, 19:1 Gear Ratio, Helical/Spur Gear, Permanent Split Capacitor Motor, Ball Bearing, 237 lb Overhung Load, Special Mounting, 40 deg C Ambient, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, Black Enamel Painted, 11.63 in L x 5.13 in H Dimensions

Standards

CSA Certified | UL Listed

Features

Permanent split capacitor design
Precision machined in-line steel gears
Lubrication is permanent semi-fluid grease and reducing possibility of leakage
Output shafts have needle bearings for high load capacities
Shafts are hardened steel
Provides superior protection against voltage spikes induced by variable frequency drives
Double shielded motor ball bearings
Needle bearings in the parallel shaft gearboxes
Designed with the exclusive Inverter Rated Insulation System (IRIS)
Steel conduit box provided as Standard

Includes

Steel Conduit Box

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.63 in L x 5.13 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Finish:	Black Enamel Painted
Frequency Rating:	60/50 Hz
Full Load Amperage:	0.72 A
Gear Ratio:	19:1
Gear Type:	Helical/Spur
Horsepower:	0.17 hp
Insulation Type:	Class F
Maximum Speed:	90 rpm
Motor Type:	Permanent Split Capacitor
Mounting Type:	Special
Overhung Load:	237 lb
Phase:	3
Rotation Type:	Reversible
Series:	P240
Shaft Diameter:	0.63 in
Shaft Length:	1-1/2 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	103 in-lb
Voltage Rating:	208 to 230 VAC
