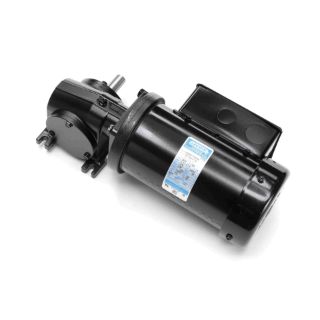

M1145127.00 LEE

Name: M1145127.00 LEE
Brand: Leeson Electric
SKU: M1145127.00 LEE
Price: 1,019.63 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1145127.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$1,019.63 / EA

Description

Brand Name

LEESON®

Type

Right Angle Continuous Duty

Description

LEESON® Gear Motor, Right Angle Continuous Duty, 208 to 230 VAC, 1.6 A Full Load Amperage, 0.38 hp, 60 Hz Frequency, 3 ph, 29 rpm Maximum, 0.63 in Shaft Diameter, 2.74 in Shaft Length, Reversible Rotation, 220 in-lb Torque, 60:1 Gear Ratio, Worm Gear, Ball Bearing, 235 lb Overhung Load, Special Mounting, 40 deg C, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, Black Enamel Painted, 12.31 in L x 5.81 in W x 5.2 in H Dimensions

Standards

CSA Certified | UL Listed

Features

Designed with the exclusive inverter rated insulation system (IRIS)
Provides superior protection against voltage spikes induced by variable frequency drives
Double shielded motor ball bearings

Includes

Steel Conduit Box

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.31 in L x 5.81 in W x 5.2 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Finish:	Black Enamel Painted
Frequency Rating:	60 Hz
Full Load Amperage:	1.6 A
Gear Ratio:	60:1
Gear Type:	Worm
Horsepower:	0.38 hp
Insulation Type:	Class F
Maximum Speed:	29 rpm
Mounting Type:	Special
Overhung Load:	235 lb
Phase:	3
Rotation Type:	Reversible
Shaft Diameter:	0.63 in
Shaft Length:	2.74 in
Temperature Rating:	40 deg C
Torque Rating:	220 in-lb
Voltage Rating:	208 to 230 VAC
