M1145144.00 LEE

Name: M1145144.00 LEE
Brand: Leeson Electric
SKU: M1145144.00 LEE
Availability: OutOfStock

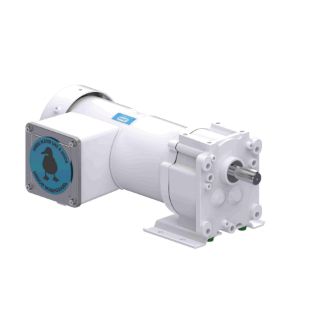

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M1145144.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Washguard® Gear Motor, Parallel Shaft Continuous Duty, Series: P240, 208 to 230 VAC, 0.85 A Full Load Amperage, 0.17 hp, 60/50 Hz Frequency, 3 ph, 16 rpm Maximum, 0.63 in Shaft Diameter, 1-1/2 in Shaft Length, Reversible Rotation, 391 in-lb Torque, 103:1 Gear Ratio, Helical/Spur Gear, Permanent Split Capacitor Motor, Ball Bearing, 237 lb Overhung Load, Special Mounting, 40 deg C Ambient, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, White Epoxy Painted, 12.38 in L x 5.13 in H Dimensions

Standards

CSA Certified | UL Listed

Features

Shaft material coated with PTFE or ceramic plating
O-rings and gaskets used for sealing
Hardened worm type gearing used
Interior components protected against corrosion
Sealed output shafts
Output shafts have needle bearings for high load capacities
500 Hz standard and 1000 Hz optional output frequency

Specifications

Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.38 in L x 5.13 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Finish:	White Epoxy Painted
Frequency Rating:	60/50 Hz
Full Load Amperage:	0.85 A
Gear Ratio:	103:1
Gear Type:	Helical/Spur
Horsepower:	0.17 hp
Insulation Type:	Class F
Maximum Speed:	16 rpm
Motor Type:	Permanent Split Capacitor
Mounting Type:	Special
Overhung Load:	237 lb
Phase:	3
Rotation Type:	Reversible
Series:	P240
Shaft Diameter:	0.63 in
Shaft Length:	1-1/2 in
Temperature Rating:	40 deg C Ambient
Torque Rating:	391 in-lb
Voltage Rating:	208 to 230 VAC
