M15201 OZG

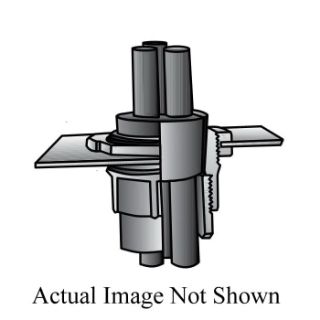

Picture of M15201 OZG
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
M-1520-1
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$416.46 / EA

Description

Brand Name

O-Z/Gedney

Type

Type M

Description

O-Z/Gedney cable supports are used to support cables in vertical raceways or risers. They relieve the strain that would be placed on terminations, the interior of panels or other devices to which the cables are connected. Properly designed cable supports must not only be capable of supporting a given weight of cable with a good margin of safety but must also support the cable without damaging the insulation or excessively reducing the amount of insulation over the conductor in the area where the cable is supported. O-Z/Gedney has been furnishing cable supports to the electrical industry for almost 100 years that meet these requirements.
O-Z/Gedney Cable Support, Type M, 1-1/2 in Size, For Use With: Rigid/IMC/EMT Conduit and Aluminum/Copper Clad Aluminum/Copper/Non-Armored Cable, Specifications: 2 in Knockout, Space Maker, Tapered Body, Multiple Segment Plug, 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 kcmil Conductor, Ductile/Malleable Iron, Hot Dipped Galvanized, 2-5/8 in Dia x 2-1/4 in H Dimensions

Application

For supporting non-armored electrical cables in vertical conduit risers, indoor and ordinary location applications

Standards

ARRA Compliant | Buy American Act Compliant | UL 514B | ANSI Specified | UL File No. E11853 | NEC 300-19

Features

  • Use with all types of insulations at all voltages
  • This fitting is similar to the type R support, except that it is threaded at the top to allow fastening to a cabinet (1/4 in THK maximum) with standard locknuts or threading into tapped (NPT) openings
  • Body only can be ordered separately, for installation prior to wire pulling
  • Plug only can be ordered later, once wires are in place
  • Use where there is insufficient room for a cable support inside a junction box
  • Due to the possibility of magnetic induction heating, a single alternating current conductor should not be used in iron fittings
  • For one or more wires

Specifications

Country of Origin:US
Dimensions:2-5/8 in Dia x 2-1/4 in H
Finish:Hot Dipped Galvanized
Material:Ductile/Malleable Iron
Size:1-1/2 in
Specifications:2 in Knockout, Space Maker, Tapered Body, Multiple Segment Plug, 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 kcmil Conductor
Suitable For Use With:Rigid/IMC/EMT Conduit and Aluminum/Copper Clad Aluminum/Copper/Non-Armored Cable
