M20251 OZG

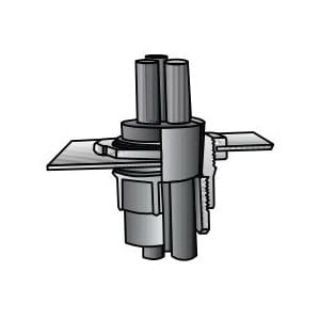

Picture of M20251 OZG
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
M-2025-1
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$572.00 / EA

Description

Brand Name

O-Z/Gedney

Type

Type M

Description

O-Z/Gedney cable supports are used to support cables in vertical raceways or risers. They relieve the strain that would be placed on terminations, the interior of panels or other devices to which the cables are connected. Properly designed cable supports must not only be capable of supporting a given weight of cable with a good margin of safety but must also support the cable without damaging the insulation or excessively reducing the amount of insulation over the conductor in the area where the cable is supported. O-Z/Gedney has been furnishing Cable Supports to the electrical industry for almost 100 years that meet these requirements.
O-Z/Gedney Space-Maker Cable Support, Type M, 2 in, For Use With: RMC, IMC and EMT Conduit, Specifications: 2-1/2 in Knockout, Ductile/Malleable Iron, Hot Dipped Galvanized, 3 in Dia x 2-5/8 in H

Application

For supporting non-armored electrical cables in vertical conduit risers and indoor, threadless RMC, IMC or EMT, the body can be attached to the male threads of a set screw or compression connector

Standards

ANSI/UL 514B | Buy American Act Compliant | NEC 300-19 | UL E-11853 | Buy American Act Compliant

Features

  • For one or more wires indoors at all voltages
  • Use with all types of insulations at all voltages
  • This fitting is similar to the Type R support, except that it is threaded at the top to allow fastening to a cabinet with standard locknuts or threading into tapped (NPT) openings
  • For PVC conduit, use a PVC terminal adapter
  • If mounting on a non-metallic/non-grounded conduit, a Type G grounding lug should be mounted on cable support body
  • Tapered body
  • 18 to 8 AWG, 6 to 1/0 AWG, 2/0 to 4/0 AWG, 4/0 AWG to 750 kcmil (aluminum/copper clad aluminum/copper) conductor
  • 1 to 4 same size wires
  • Cable support plugs will not be supplied undrilled

Includes

pOZi-gripâ„¢ "R-Style" Multiple Segment Wedging Plug

Specifications

Country of Origin:US
Dimensions:3 in Dia x 2-5/8 in H
Finish:Hot Dipped Galvanized
Material:Ductile/Malleable Iron
Size:2 in
Specifications:2-1/2 in Knockout
Suitable For Use With:RMC, IMC and EMT Conduit
