M5200RS1 HWD

Name: M5200RS1 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: M5200RS1 HWD
Price: 1,643.44 USD
Availability: OutOfStock

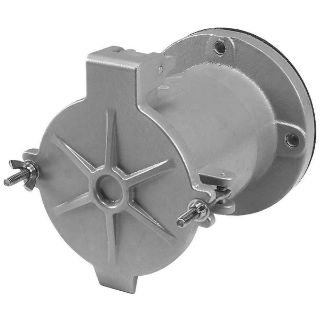

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

M5200RS1

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1,643.44 / EA

Description

Brand Name

Wiring Device-Kellems

Type

Female Insulated Single Watertight Screw Mount

Description

Wiring Device-Kellems Insulgrip® Pin and Sleeve Receptacle, Female Grounding Heavy Duty Interior Standard Replacement Watertight, 600 VAC, 200 A, 4 Poles, 5 Wires, Marine Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite/Thermoplastic, Black, 7.39 in Dia x 7.76 in L

Application

For HBL5200RS1W and HBL5200CS1W Watertight Connectors

Standards

RoHS Compliant | UL 498 | UL 1682 | UL 1686 | IEC 309 | CSA C22.2 No. 182.1

Features

Certified for current interrupting at full rated current
Withstands 3000 VAC minimum dielectric voltage
Moisture and impact resistance
Identification and ratings are permanently fastened to the device housing
Corrosion resistant receptacle
Watertight neoprene sealing glands for reliable seal
Pin chamber confines arcing within the interior chamber
600 Vrms maximum working voltage
Spring-Loaded, gasketed cover for dust-tight seal

Specifications

Amperage Rating:	200 A
Color:	Black
Country of Origin:	US
Dimensions:	6.9 in W x 7.76 in D x 7.39 in H
Grade:	Marine
Material:	Composite/Thermoplastic
NEMA Rating:	4X
Number of Poles:	4
Number of Wires:	5
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Pressure Screw
Voltage Rating:	600 VAC
