M900599.00 LEE

Name: M900599.00 LEE
Brand: Leeson Electric
SKU: M900599.00 LEE
Availability: OutOfStock

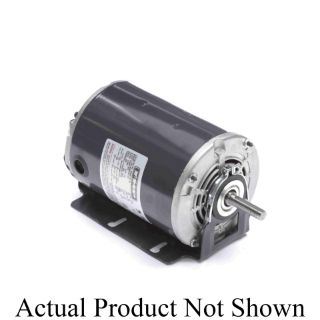

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

M900599.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Air Conditioner Motors, Fan and Blower Motors, General Purpose HVAC Motors Application, 0.5/0.17 hp, 115 VAC, 8.4/4.5 A, 60 Hz Frequency, 1 ph ph, 1725/1140 rpm Speed, DP Enclosure, 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.25 Service Factor, Ball Bearing, 24 ft-lb Torque, Resilient Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 11.85 in L Dimensions

Application

Roof Ventilators and Exhaust Fans, Residential and Industrial Belted Fan Application

Standards

CSA Certified | UL Listed

Features

Low starting torque
Resilient cradle style base
Automatic overload protection
Split phase design

Specifications

Amperage Rating:	8.4/4.5 A
Application Type:	Air Conditioner Motors, Fan and Blower Motors, General Purpose HVAC Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.85 in L
Enclosure Type:	DP
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	0.5/0.17 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Resilient Base
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.25
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725/1140 rpm
Temperature Rating:	40 deg C
Torque Rating:	24 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115 VAC
