MA1309TV LBB

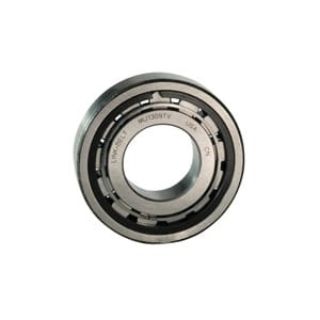

Picture of MA1309TV LBB
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
MA1309TV
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$175.90 / EA

Description

Brand Name

Link-Belt®

Type

Narrow Width

Description

Metric series cylindrical roller bearings are manufactured to ABMA boundary dimensions. These bearings require minimum space and provide maximum rated capacity. Various configurations including separable inner or outer ring combinations offer ample application flexibility.
Link-Belt® Cylindrical Roller Bearing, Narrow Width, Series: 1300 Medium, 45 mm Bore Dia, 100 mm Outside Dia, 1 Row, 25 mm W, Open Closure, 15900 lb Dynamic/20400 lb Static, Chrome Steel Bearing, Steel Cage, Uncoated

Application

Heavy-Duty Truck, Fluid Handling, Off-Highway Vehicles, Military, Oil/Natural Gas and Steel Industries

Standards

ANSI/ABMA STD 11

Features

  • High quality rings
  • Micro finished raceways assure smooth operations
  • Optimized raceway contact area
  • Positive roller spacing
  • Fully crowned roller
  • Precision ground rib
  • Contoured roller pockets
  • Rollers individually separated
  • Outer ring with two retaining rings in inside diameter
  • Formed steel retainer
  • Plain cylindrical inner ring
  • Standard capacity

Specifications

Bearing Material:Chrome Steel
Bore Diameter:45 mm
Cage Material:Steel
Closure Type:Open
Finish:Uncoated
Load Capacity:15900 lb Dynamic/20400 lb Static
Number of Rows:1
Outside Diameter:100 mm
Series:1300 Medium
Width:25 mm

Products Specifications

Brand Name
Rexnord
