MA2103 RND

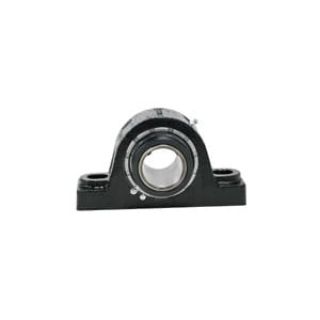

Picture of MA2103 RND
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
MA2103
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,135.80 / EA

Description

Brand Name

Rex®

Type

Normal Duty

Description

Rex® Pillow Block Spherical Roller Bearing, Normal Duty, Series: 2000, 1-3/16 in Bore, 4-3/4 in Bolt Center-to-Center Length, 1-3/4 in Base to Bore Centerline, 6-5/16 in Overall Length, 2-11/16 in Overall Width, 3-7/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/8 in Base Width, Single Set Screw Collar Locking Device, Spring-Loaded/Heavy Contact Seal, Non-Expansion (Fixed) Expansion, 18850 lb Dynamic/18300 lb Static Load, 225 deg F, 3700 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

  • Easy bearing clearance adjustment
  • Replaceable bearing
  • Pre-lubricated with standard grease for normal operation
  • Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
  • Rugged housing
  • Simplest installation
  • Most economical

Specifications

Base to Bore Centerline:1-3/4 in
Base Width:2-1/8 in
Bolt Center-to-Center Length:4-3/4 in
Bore Diameter:1-3/16 in
Bore Type:Round
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:18850 lb Dynamic/18300 lb Static
Locking Device:Single Set Screw Collar
Material:Cast Iron
Maximum Speed:3700 rpm
Mounting Type:Two-Bolt Base
Overall Height:3-7/16 in
Overall Length:6-5/16 in
Overall Width:2-11/16 in
Seal Type:Spring-Loaded/Heavy Contact
Series:2000
Temperature Rating:225 deg F

Resources

Video

Products Specifications

Brand Name
Rexnord
